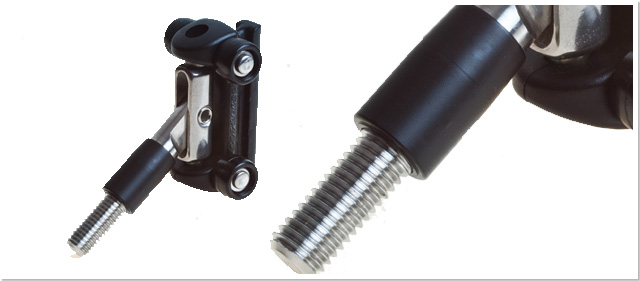

Battcar with M10 Stainless Steel thread (extended)
This product can only be ordered from a Rutgerson dealer.
The Rutgerson Battcar has a unique design which requires minimum maintenance and makes the mainsail extremely easy to hoist and lower. This model with extended threaded connector is suitable for boats up to 44ft monohull and 36ft multihull. It is available in both high strength and standard version and comes in five different profiles to fit most masts. This product is made of high strength composite and stainless steel.
Part no
Description
Profile
Lenght / stack height mm
Wheel size Ø mm
Adaptor material
Recommended fitting
Approx. Push BL (kg)
Approx. Pull BL (kg)
Weight [g]
Packed per
1530-11-09
Battcar, 11mm with M10 thread (extended)
11mm
66
15,5
Stainless Steel
1580, 1587, 1590, 1595, 1596, 1597
550
350
115
10
1530-11-09E
Battcar, 11mm with M10 thread (extended) E-gate
11mm E-gate
66
15,5
Stainless Steel
1580, 1587, 1590, 1595, 1596, 1597
550
350
115
10
1530-16-09
Battcar, 16mm with M10 thread (extended)
16mm
66
15,5
Stainless Steel
1580, 1587, 1590, 1595, 1596, 1597
550
400
115
10
1530-19-09
Battcar, 16mm with M10 thread (extended)
19mm
66
15,5
Stainless Steel
1580, 1587, 1590, 1595, 1596, 1597
550
420
113
10
1530-20-09
Battcar, 20mm withM10 thread (extended)
20mm
66
15,5
Stainless Steel
1580, 1587, 1590, 1595, 1596, 1597
550
430
119
10
1530-23-09
Battcar, 23mm withM10 thread (extended)
23mm
66
15,5
Stainless Steel
1580, 1587, 1590, 1595, 1596, 1597
550
450
119
10
1531-11-09
Battcar, 11mm with M10 thread (extended) and 19,5mm wheels
11mm
66mm
19,5
Stainless Steel
1580, 1587, 1590, 1595, 1596, 1597
550
350
115
10
1535-23-09
Battcar High Load, 23mm with M10 thread (extended)
23mm
68
15,5
Stainless Steel
1580, 1587, 1590, 1595, 1596, 1597
900
575
131
10
1536-11-09
Battcar High Load, 11mm with M10 thread (extended) and 19,5mm wheels
11mm
68
19,5
Stainless Steel
1580, 1587, 1590, 1595, 1596, 1597
785
450
111
5
