Prime Hatch 60
Find dealerDiscover the next generation of deck hatches with the Prime Hatch. This new hatch assortment is built on the proven Master Flush hatch, with 12mm tinted acrylic glass, but does not require a recess on deck. This means that Prime Hatches and Master Flush hatches complement each other and elevates the design of the boat deck when used together.
The Prime Hatch is the ideal choice for boat owners who demand durability, style, and ease of use in every detail. Designed for performance and longevity, this hatch combines sleek aesthetics with uncompromising quality.
Conforms to the CE standards EN ISO 12216:2002, EN ISO 9094-1 and EN ISO 9094-2
Part no
Inner / Outer handles
Stay
Outer dimensions X x Y x Z [mm]
Height H [mm]
Cut-out dimensions A x B x C [mm]
Weight [kg]

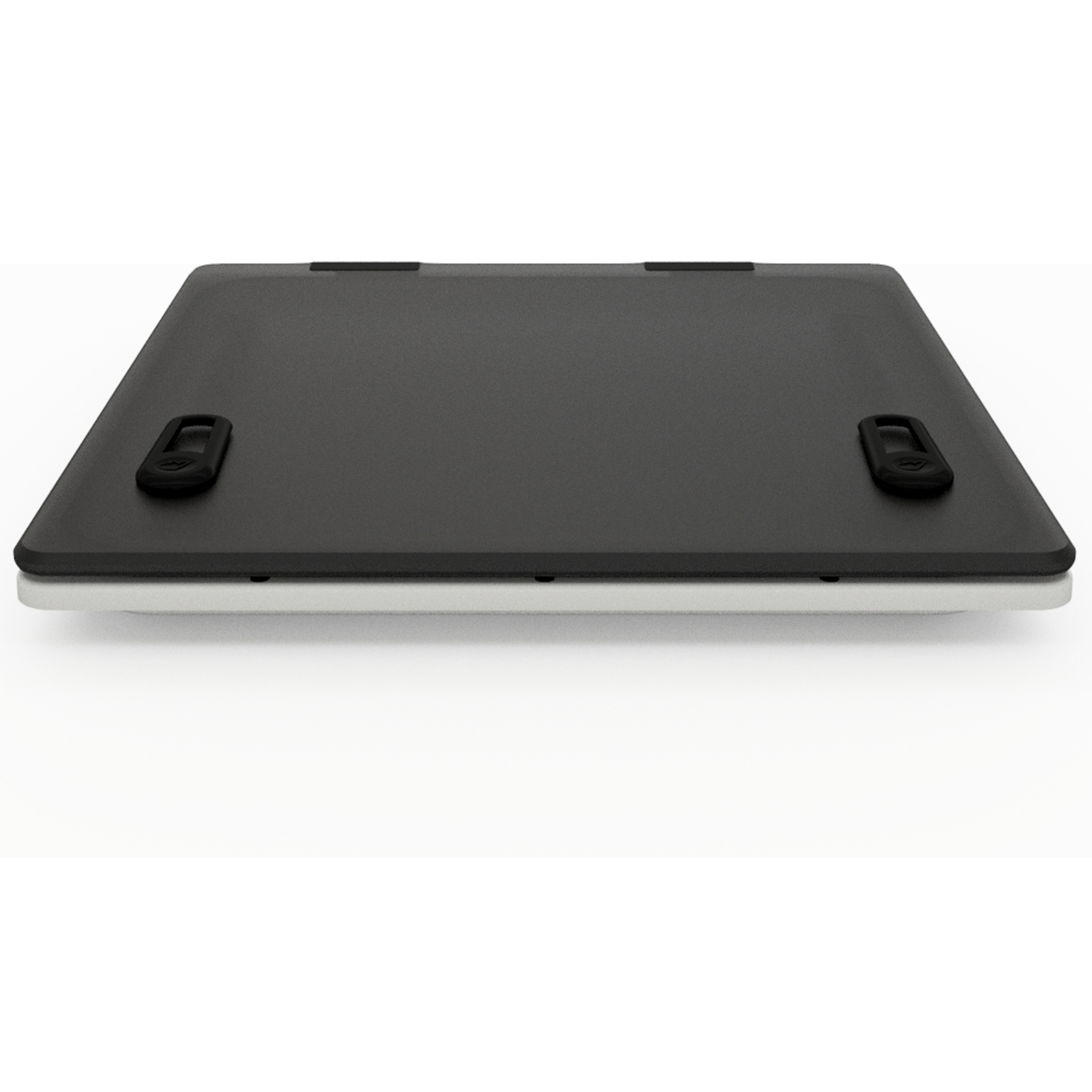

H6050-1411
Composite
2 x Manual
563 x 573 x 23
31
507 x 507 x 42,5
6,5

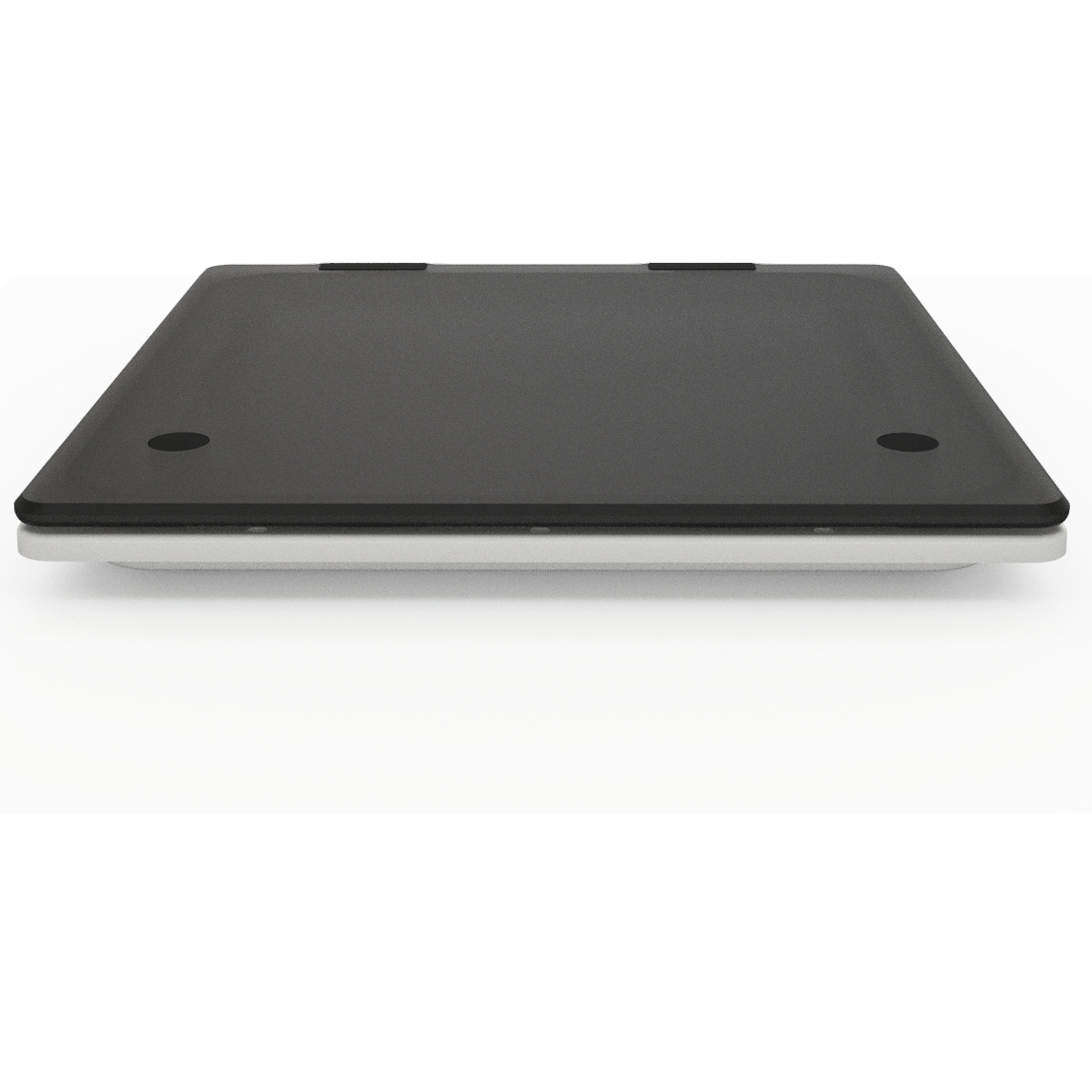

H6050-1412
Composite / Knobs
2 x Manual
563 x 573 x 23
31
507 x 507 x 42,5
6,5

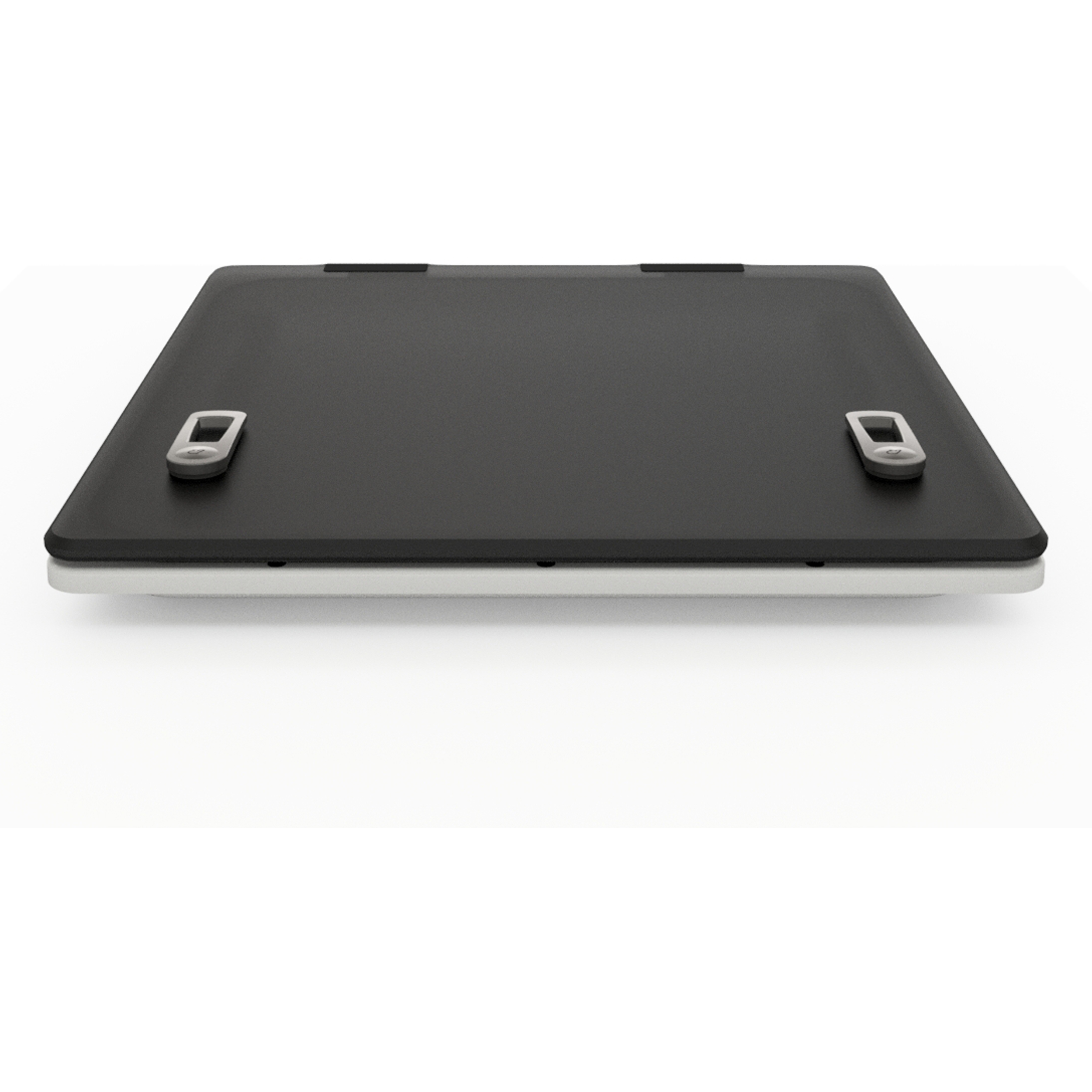

H6050-1413
Composite / Stainless Steel
2 x Manual
563 x 573 x 23
31
507 x 507 x 42,5
6,8
H6050-1415
Stainless Steel
2 x Manual
563 x 573 x 23
31
507 x 507 x 42,5
7,0
